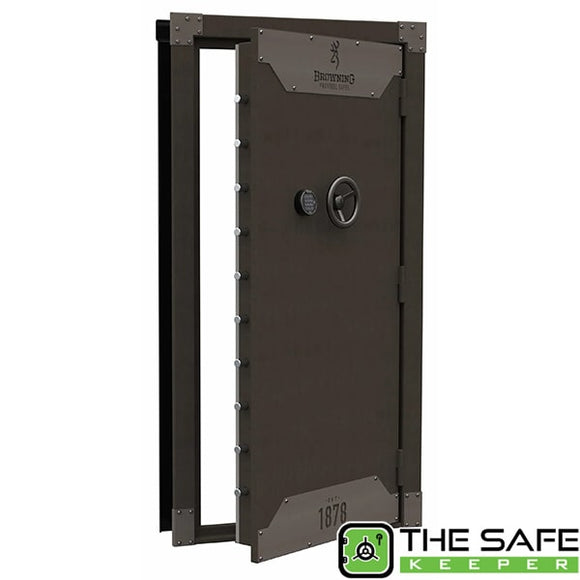

Browning 1878 Clamshell Vault Door Out-Swing Gloss Specifications
Total:
- Swings: Outward
- Dimensions Frame: 83" H x 42.75" W
- Rough Door Opening: 82" H x 40" W
- Weight: 910 lbs
Security:
- 1-7/8" Fire Insulation on Door
- Palusol® Expanding Fire Seal
- Door Type: Duo-Formed
- Bolts: 1-1/4" Chrome Bolts
- Number of Door Bolts: 24
Lock Option:
- S&G Mechanical or S&G Electronic or SecuRam Biometric
- Lock System: Uni-Force
- OmniBarrier® Lock Protection System
Interior & Style:
- Handle Type: Cast Iron Wheel
- Paint: Metal Glaze
- Scene / Graphics: 1878 Laser Cut Steel
- External Ball Bearing Hinges
The minimum rough door opening for the Clamshell Vault Door is 40" x 82".
Clamshell flange has a 3-1/2" range of adjustment to fit walls with a minimum thickness of 8" to a maximum thickness of 11-1/2".
Clamshell flange design includes an internal and external flange for additional security and improved appearance.
Can be secured into an existing door frame using the clamshell flange or, for additional security, using expansion anchors or lag bolts (not included).
External L-frame with 1/2" diameter steel J-bolt anchors (included) can be poured in place in new construction or installed in an existing door frame by using expansion anchors or lag baits (not included).
